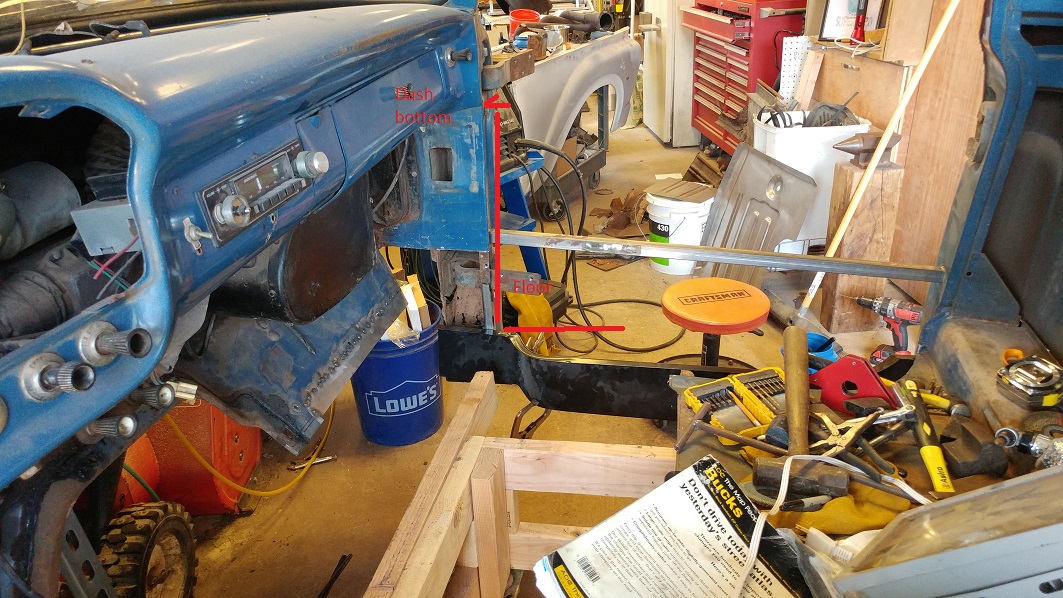

I'll repost this here, maybe I'll get some action in this forum. After ripping the passenger side apart I've got a fairly good idea of how things go together, however I need some help. I've attached a picture of whats left of my cab, and circled in red what I need a few good pictures of.
Rabidsquirrel wrote:Hello all,
Does anyone have some good pictures of a clean/repaired '61 F100 cab? I'm replacing the floors, steps, kick plates, rockers and lower door hinges. Usually I'd gently disassemble and take notes, but this thing has been so hacked/spliced/booger welded that it's pretty much a loss for disassembly.
I guess long story short is I'm looking for 3 pictures for spot weld locations: front cab corner, underneath looking at the step, and door open, looking at the step. Or if someone documented their replacement of all of those that would be great.
Thanks.
Last edited by Rabidsquirrel on July 28, 2018, 10:32 am, edited 1 time in total.
So I finally managed to find what I think is a 1961 F100 cab:
I'll leave this up for future googling.
I guess now my next question is how is the step riser placed? Does it sit on top of the floor, butt welded, or the floor on top of the flange? As you can somewhat see in my picture below, the newer riser was placed over the original and then held in place with a healthy booger weld.
I've cut out quite a bit more of the cab. It's a shame how rusty the lower portions of it are, when 75% of the floor is good and everything above that is perfect. I'm currently trying to make inside cab corners. I wanted to reproduce the originals, but I lack the equipment to do that. I'm going to end up ordering a bead roller and just get as close as I can.
You're right about the back side panels. I just made a panel on the passenger side with my bead roller because I replaced the whole panel all the way up to the floor. On the drivers side I only went up about half way and there's a pocket pressed in on one side and it's a pain to replicate. I ended up making that pocket with three pieces of metal. I have no idea how many hours I have in that panel. They should be making these panels, because if the cab corner is bad the chances are that the inner panel is shot also. You'll get it done.
Hi RS, looks like you found the pic. I cut off and replaced the flat panel on back side, but if truth be told, you are right, most replacements including mine should replace the entire lower structure.
In mine, the floor sat on top of the door well flange. I left the door well lip in placecwhen i cut my floors and used the lip at welding surface based on my lack of welding skills.
Your description precisely describes my welding technique - booger weld.
Jeff in Mooresville
63 Flareside and 65 Styleside projects underway
